ELPECAST® casting compounds

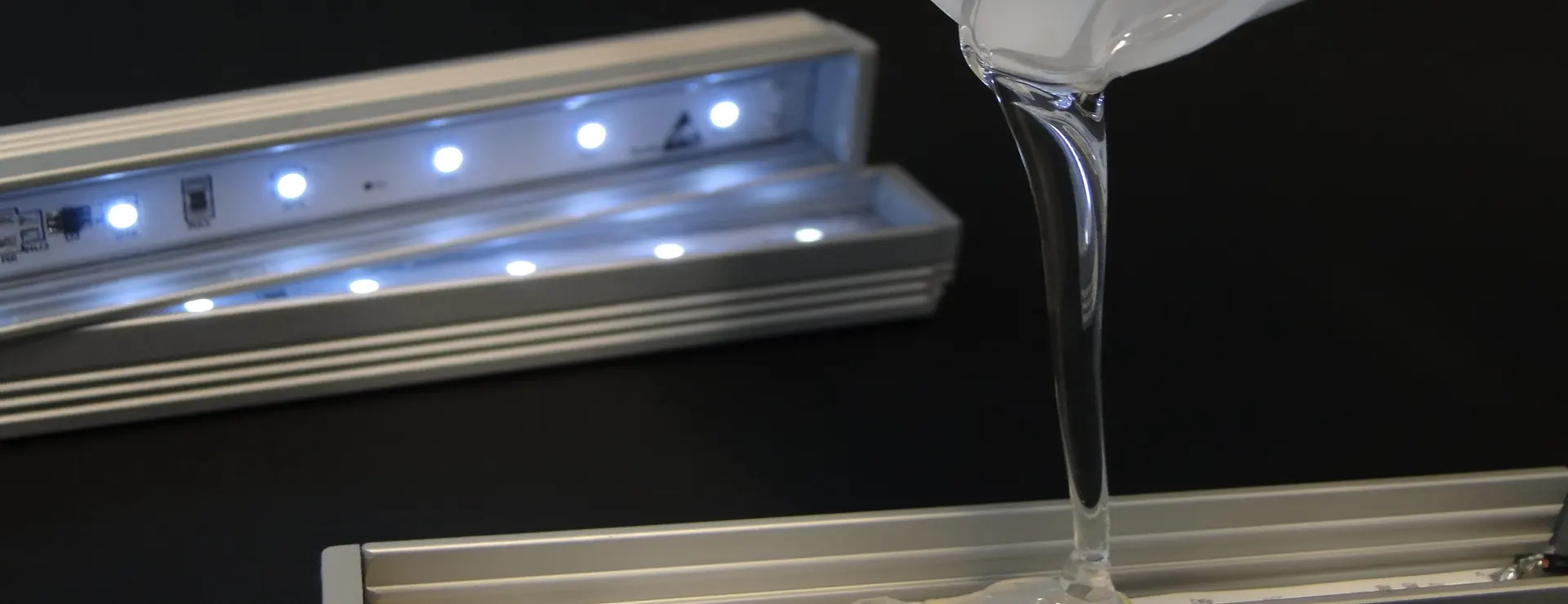

ELPECAST® casting compounds protect and insulate electronics, sensor technology and lighting electronics against extreme weather conditions and aggressive media. A large variety of transparent and opaque products fulfills numerous individual requirements and customer requests.
ELPECAST® Wepuran casting compounds (polyurethane UR)
a large variety is available in terms of viscosity, colours, processing time and pot life; numerous hardness and elasticity adjustments cover the full range of shore hardness; good resistance against water, moisture, lyes, acids and many chemicals; elastic adjustments are a low-cost alternative for silicone casting compounds
ELPECAST® Wepuran VT 3402 KK series
- crystal-clear and highly transparent
- very high optical transparency with low optical damping
- very good weather resistance, extraordinary UV light stability and good thermal resistance
- for outdoor use or underwater applications, in flexible LED strips, aluminium profiles and more
- transparent colouring by dyestuff concentrates
- an even light diffusion effect can be realised with the ready-to-use hazy casting compounds VT 3402 NV-H/1 to H/4, the opaque top coat VT 3492 LS or the hazing paste
- auxiliary products recommended: Accelerating Agent B 4402, adhesion promoter AP 4 LED, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: colourless transparent, red, and blue
- Transparency: transparent
- Temp: - 65 to + 90 °C
- Flammability: UL 94 (non-flammable)
ELPECAST® Wepuran VT 3406
- colourless transparent with good weather resistance and UV light stability
- for moderate demands on optical properties, e.g. for encapsulating assemblies that must remain permanently visible
- low-viscous (good flowability)
- highly elastic, easy to remove for repair purposes
- auxiliary products recommended: Accelerating agent B 4400, adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: colourless transparent
- Transparency: transparent
- Temp: - 65 to + 90 °C
- Flammability: not applicable
ELPECAST® Wepuran VT 3407
- very low-viscous (particularly flowable)
- opaque in thick layers
- high mechanical resistance
- auxiliary products recommended: Accelerating agent B 4400, adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.60, cleaning agent R 13.780
- Colours: brown
- Transparency: transparent
- Temp: - 65 to + 90 °C
- Flammability: not applicable
ELPECAST® Wepuran VU 4444/31 SB-WB / VU 4494/31 SB-WB
- elastic
- very good weather resistance and UV light stability, no loss of gloss
- high yellowing resistance of the white adjustment
- auxiliary products recommended: Accelerating agent B 4402, adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: white opaque and black
- Transparency: not transparent
- Temp: - 65 to + 90 °C
- Flammability: hardly flammable
ELPECAST® Wepuran VU 4451/51 SB
- low-viscous (good flowability)
- elastic
- auxiliary products recommended: Accelerating agent B 4400, adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: blue
- Transparency: not transparent
- Temp: - 65 to + 90 °C
- Flammability: hardly flammable
ELPECAST® Wepuran VU 4452 series
- highly elastic
- relatively high temperature resistance; low-cost alternative for silicone casting compounds
- auxiliary products recommended: Accelerating agents B 4400 / B 4402, adhesion promoter EH 13.950, sealing mastic EH 13.271,
- Colours: black and blue
- Transparency: not transparent
- Temp: - 65 to + 120 °C
- Flammability: not applicable
ELPECAST® Wepuran VU 4452/41 SV-HF
- high mechanical resistance
- complies with hazard level 3 of the railway standard EN 45545-2:2013 (oxygen index (OI) of 51 % in acc. with ISO 4589-2:2006)
- auxiliary products recommended: Adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: blue
- Transparency: not transparent
- Temp: - 65 to + 120 °C
- Flammability: UL 94 (non-flammable)
ELPECAST® Wepuran VU 4453 series
- highly elastic
- very low water absorption
- various viscosities, pot lives and shore hardnesses
- thixotropic adjustment for dam-and-fill applications / dispensing
- VU 4443/92 WR-NV fulfils the requirements of IEC 60079-0, section 26.10 “Resistance to UV light”
- VU 4453/71 HE-T is recognized by UL as polyurethane adhesive in category QOQW2 „Polymeric Adhesive Systems, Electrical Equipment – Component“ (File E501223)
- water resistant adjustments for underwater applications
- auxiliary products recommended: Accelerating agent B 4400, adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: black, dark gray, blue, and beige
- Transparency: not transparent
- Temp: - 65 to + 90/130 °C
- Flammability: not applicable
ELPECAST® Wepuran VU 4457 series
- “allround” casting compounds for many different fields of application
- various viscosities and pot lives
- high mechanical resistance
- auxiliary products recommended: Accelerating agent B 4400, adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: black, dark gray, and blue
- Transparency: not transparent
- Temp: - 65 to + 90 °C
- Flammability: hardly flammable
ELPECAST® Wepuran VU 4459/41 SV-HF series
- high mechanical resistance
- auxiliary products recommended: Adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning Agent R 13.780
- Colours: blue
- Transparency: not transparent
- Temp: - 65 to + 90 °C
- Flammability: UL 94 (non-flammable) and hardly flammable
ELPECAST® Wepesil casting compounds (silicone SR)
highly elastic, easy to remove for repair, dielectric properties are almost constant over wide temperature/frequency range, outstanding chemical and weather resistance, addition crosslinking, very low heat development and very low shrinkage pressure when cured
ELPECAST® Wepesil VT 3602 KK
- highly transparent even in thick layers
- high optical temperature resistance
- outstanding weather resistance and UV light stability
- auxiliary products recommended: Adhesion promoter G 4660, sealing mastic EH 13.271, cleaning agent R 13.780
- Colours: colourless transparent
- Transparency: transparent
- Temp: - 65 to + 200 °C
- Flammability: not applicable
ELPECAST® Wepesil VU 4675
- good flowability
- particularly good thermal conductivity (approx. 1.2 W/mK) due to ceramic fillers
- auxiliary recommended: Adhesion promoter G 4660, sealing mastic EH 13.271, cleaning agent R 13.780
- Colours: dark gray
- Transparency: not transparent
- Temp: - 65 to + 200 °C
- Flammability: not applicable
ELPECAST® Wepesil VU 4691 E series
- highly viscous
- good thermal conductivity (approx. 0.7 W/mK)
- withstands short-term loading of up to 250 °C
- auxiliary products recommended: Adhesion promoter G 4660, sealing mastic EH 13.271, cleaning agent R 13.780
- Colours: dark gray
- Transparency: not transparent
- Temp: - 65 to + 200 °C
- Flammability: not applicable
ELPECAST® Wepesil VU 4694 E
- good flowability
- good thermal conductivity (approx. 0.8 W/mK)
- withstands short-term loading of up to 250 °C
- auxiliary products recommended: Adhesion promoter G 4660, sealing mastic EH 13.271, cleaning agent R 13.780
- Colours: white opaque
- Transparency: not transparent
- Temp: - 65 to + 200 °C
- Flammability: not applicable
ELPECAST® Wepox casting compounds (epoxy ER)
high mechanical resistance, excellent resistance against water, moisture and aggressive media, outstanding adhesive strength
ELPECAST® Wepox VT 3000
- low-viscous (good flowability)
- transparent even in thick layers
- auxiliary products recommended: Adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: yellow
- Transparency: transparent
- Temp: - 65 to + 130 °C
- Flammability: not applicable
ELPECAST® Wepox VU 4085 series
- low-viscous (good flowability)
- long processing time/pot life
- good thermal conductivity
- auxiliary products recommended: Adhesion promoter EH 13.950, sealing mastic EH 13.271, mould release agent EH 13.650, cleaning agent R 13.780
- Colours: black and brown
- Transparency: not transparent
- Temp: - 65 to + 130 °C
- Flammability: hardly flammable
